WaveFloor is a modular bulk-reclaim system that helps unload silos and storage vessels using gravity, sensors, and controlled waves through the material. Engineers configure each floor to the product and vessel, then assemble systems at WaveFloor’s Belle Plaine, Iowa facility for North American projects.

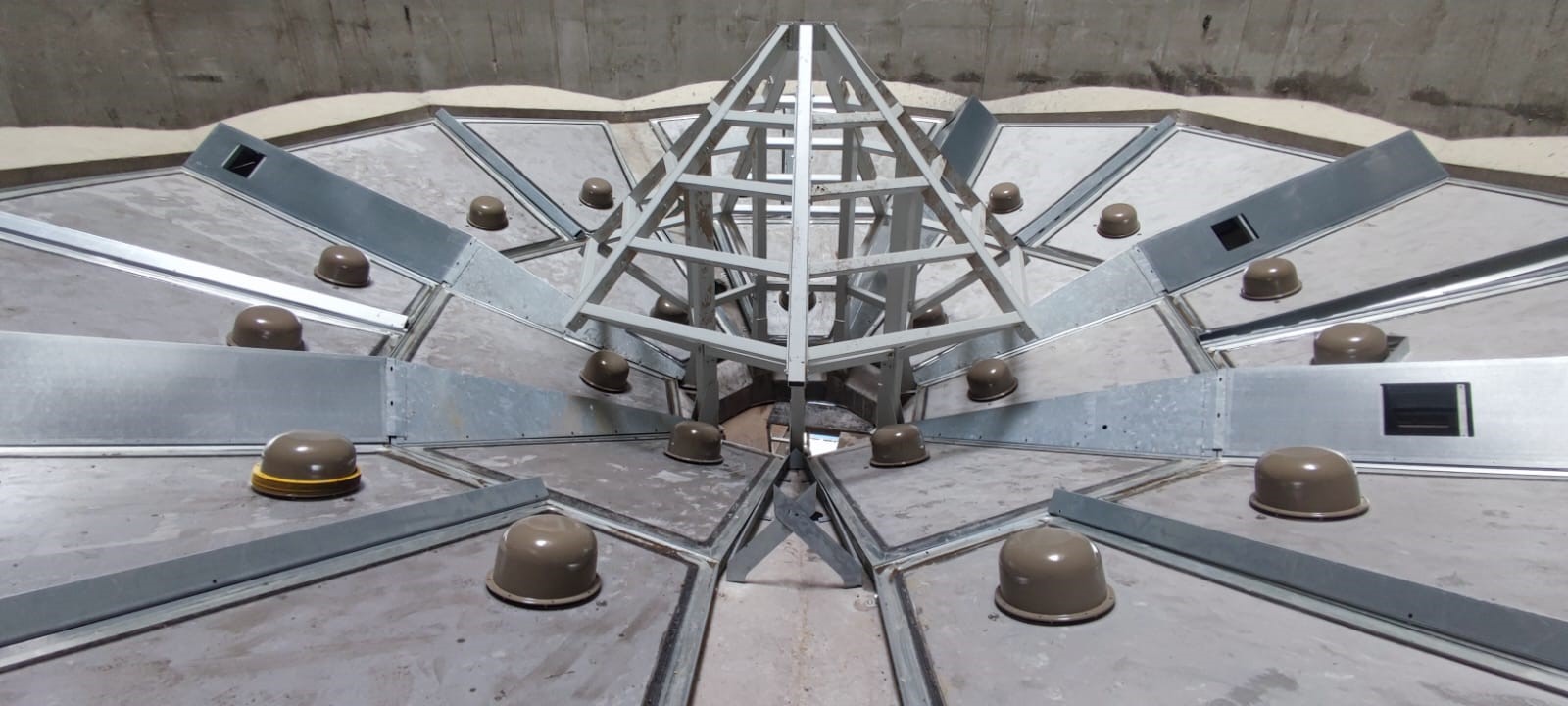

WaveFloor modular reclaim system
01 / The principle
WaveFloor works with gravity, sending controlled waves through the material from the discharge up the slope. Sensors detect when a floor zone clears and activate modules in sequence, helping empty the vessel while isolating operating forces from its structure.
Interactive system sequence
01 / 0401 / Gravity flow
Product naturally moves down the sloped floor toward the discharge. No sweep arm is needed to chase the final layers.
10°–20°
Typical floor slope*
Row by row
Sensor-led activation
Independent
Modular architecture
Up to 5× less
Energy use vs. alternatives*
*Floor slope and performance depend on product and system design. WaveFloor technical data indicates energy use up to five times lower than alternative systems for the same product volume and discharge rate. Confirm project-specific performance during engineering.
02 / Materials & markets
WaveFloor systems are designed around the bulk material and its storage application. Select an industry to explore example products.
Support dependable discharge at power generation sites and harbor terminals where rate and product integrity matter.
Examples of bulk products
03 / Storage geometry
The modular reclaim floor is configured to the storage shape, site conditions, and flow characteristics of the material.
Selected arrangement

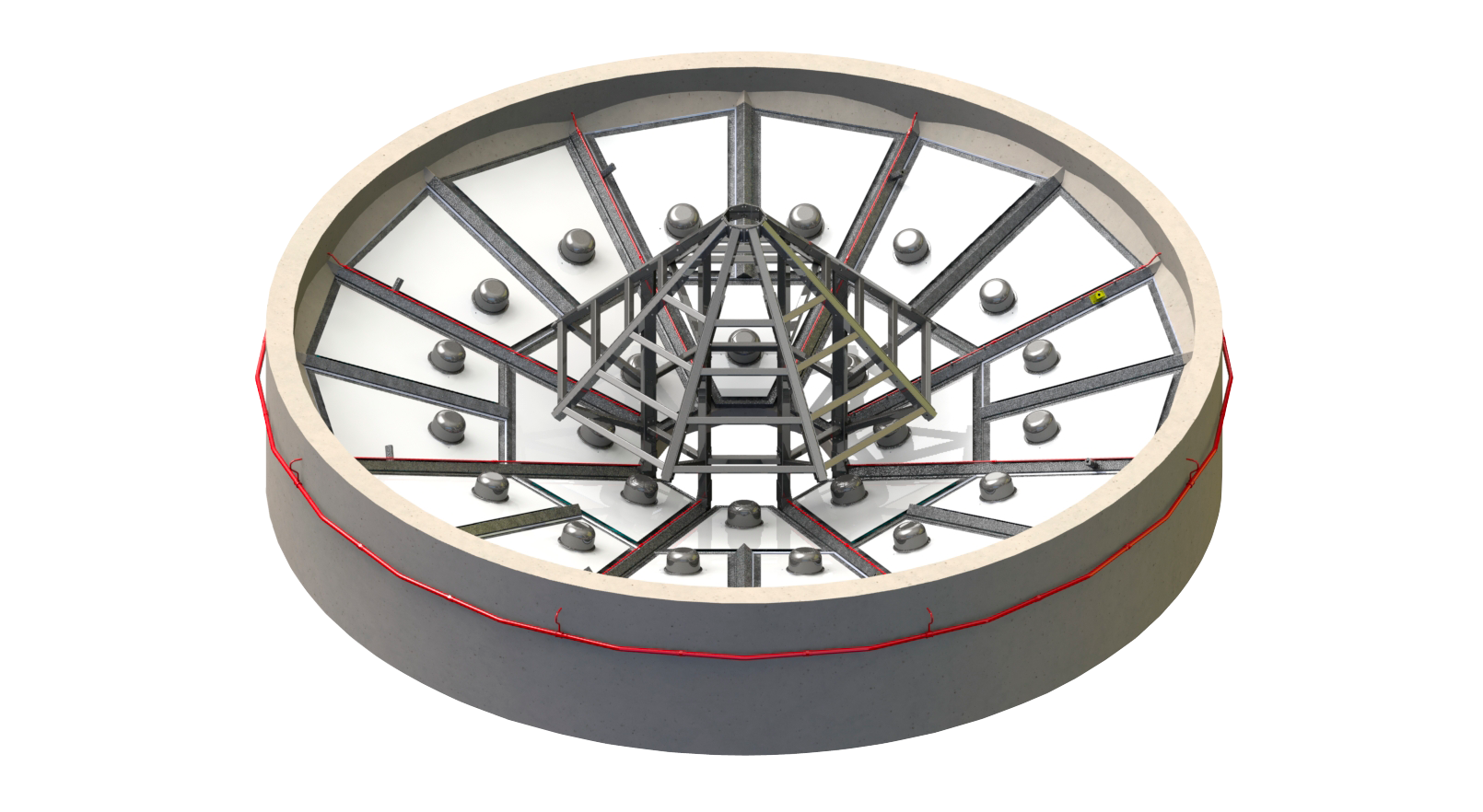

Radial modules guide material toward a single outlet.
Also engineered for linear V · linear W · rectangular / square · ship holds
Vessels
Concrete & steel silos
Footprints
Domes & flat-bottom stores
Transport
Ships & rail cars
Mobile storage
Containers & trucks
04 / Designed around you
From mechanical and electrical design through manufacturing, shipping, installation supervision, commissioning, training, and system monitoring, WaveFloor works with each customer throughout the project.
Explore WaveFloor project services

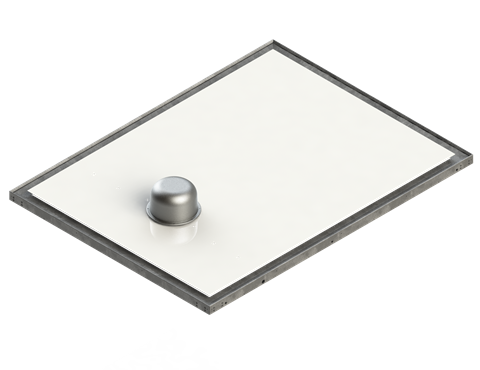

Wave plate
Transfers controlled wave action into the material layer at the base of the pile.
Wave-drive unit
Supplies controlled energy when a zone calls for reclaim.
Rigid, sealed chassis
Forms an independent building block for the floor.
05 / Built for confidence
A robust, fully modular design supports safe operation, efficient unloading, and product integrity across a wide range of storage geometries.
Designed for large storage and short cycle operations.
A clean silo without a separate clean-out step.
Spring-mounted drive units help isolate operating forces from the vessel.
No mechanical effort on the stored material; reduced dust.
Gravity and efficient electric drives work together.
Independent units keep reclaim possible if a module stops.
WaveFloor incorporates patented reclaim technology developed over decades and continues to evolve. Systems are available for a wide range of applications, including ATEX zone 20 where specified.
WaveFloor system advantagesSafety by design / Zero-entry reclaim
WaveFloor automates the reclaim sequence to help remove routine manual clean-out inside a silo or container. Fewer planned entries mean fewer confined-space exposures, less manual intervention, and a system designed for low-maintenance operation.
Zero-entry refers to standard reclaim operation and does not replace site-specific confined-space, lockout/tagout, inspection, or maintenance procedures.
Safety context / independent sources
OSHA’s Grain Handling Facilities standard covers employee entry into grain storage structures such as bins, silos, and tanks. WaveFloor automation is designed to support normal reclaim without routine manual clean-out, but it does not replace site-specific confined-space, lockout/tagout, inspection, or maintenance procedures.
Research context
A University of Illinois project page hosted by USDA NIFA reports an estimate of about 30 U.S. grain entrapments per year, with roughly half fatal. This is a historical estimate from that project page, not a current-year count or a WaveFloor-specific performance claim.
Technical content by WaveFloor Technical Team.
06 / A new US chapter
WaveFloor brings VibraFloor’s patented reclaim technology to its assembly facility in Belle Plaine, Iowa. WaveFloor is a joint venture between VibraFloor and CFAB Global. CFAB Global handles North American installation, controls programming, and fabrication.
Leadership
Deryck Cleppe · Chief Executive Officer
Technical resources
07 / Frequently asked
WaveFloor is a modular floor system for reclaiming bulk material from storage vessels. It combines gravity, sensors, and controlled waves through the material. The system uses patented VibraFloor technology and is assembled in Belle Plaine, Iowa.
Material moves by gravity toward the discharge. Sensors signal the control system as floor zones clear, and modules activate in sequence from the outlet up the slope. The exact arrangement depends on the vessel and stored material.

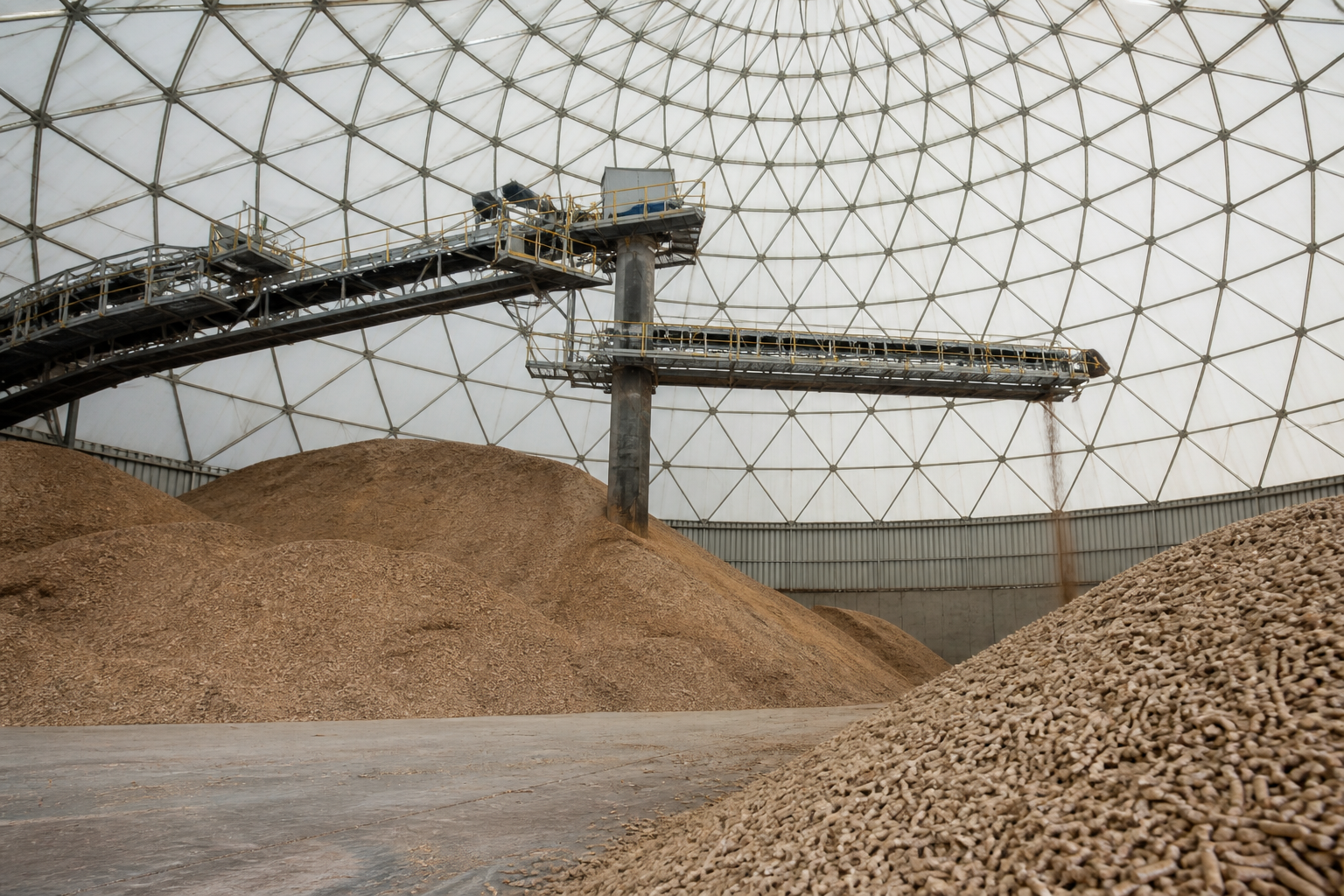

Example applications include grain and oilseeds, animal-feed ingredients, biomass such as wood pellets, and industrial materials such as cement, fertilizer, and salt. Product flow properties, vessel geometry, and operating requirements are evaluated for each project.
WaveFloor is designed to support normal reclaim without routine manual clean-out inside the vessel. It does not eliminate every entry or replace site-specific confined-space, lockout/tagout, inspection, or maintenance procedures.
